Evaluate Basenji2 for personal gene expression#

Here we will reproduce the results from Huang et al. 2023. All the steps here exactly match the steps in the original paper except for the 1 bp jittering and forward and reverse complementing of the haplotypes, which make no apparent difference to the results and will save us quite a bit of time.

Even with with this time-saving simplification, processing all 3,259 eGenes from Lappalainen et al. 2013 may take hours to days to run depending on your GPU. Thus, we’ll just use the first 100 genes for this tutorial which should run in a few minutes. If you do not have a GPU, we recommend skipping this tutorial as Basenji2 is prohibitively slow without one.

[1]:

from math import log

import genvarloader as gvl
import matplotlib.pyplot as plt
import numpy as np
import polars as pl
import polars.selectors as cs
import scipy.stats as st
import seaborn as sns
import seqpro as sp
import torch
from basenji2_pytorch import Basenji2, basenji2_params, basenji2_weights
from einops import rearrange
from genoray import PGEN
from genoray.exprs import is_biallelic, is_snp
from tqdm.auto import tqdm

/carter/users/dlaub/projects/GenVarLoader/.pixi/envs/docs-gpu/lib/python3.12/site-packages/sorted_nearest/__init__.py:1: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
  import pkg_resources

Here, we’ll use GenVarLoader’s data registry to fetch all the relevant files for the Geuvadis dataset:

A list of eGenes and their TSS coordinates from Lappalainen et al. 2013
Gene expression from Geuvadis
A PGEN file of phased and unphased 1,000 Genomes genotypes for 465 individuals
A table of sample IDs that are phased
A table annotating the tracks (targets) that Basenji2 outputs

[2]:

ds_path = input("Dataset path (should end in .gvl): ")
pred_path = input("Prediction path (should end in .npy): ")
basenji2_in_len = 2**17
basenji2_out_len = 896
paths = gvl.data_registry.fetch("geuvadis_ebi")
samples = pl.read_csv(paths["samples"], separator="\t").to_series().to_list()

[3]:

genes = pl.read_csv(
    paths["genes"],
    has_header=False,
    new_columns=["gene_id", "chrom", "chromStart", "hgnc", "strand"],
)
genes.head()

[3]:

shape: (5, 5)

gene_id	chrom	chromStart	hgnc	strand
str	i64	i64	str	str
"ENSG00000000457"	1	169863408	"SCYL3"	"-"
"ENSG00000001630"	7	91772266	"CYP51A1"	"-"
"ENSG00000002549"	4	17578815	"LAP3"	"+"
"ENSG00000002745"	7	120965421	"WNT16"	"+"
"ENSG00000003056"	12	9102551	"M6PR"	"-"

[43]:

expr = (
    pl.read_csv(paths["expr"], separator="\t")
    .rename({"TargetID": "gene_id"})
    .drop("Gene_Symbol", "Chr", "Coord")
    .with_columns(
        pl.col("gene_id").str.split(".").list.get(0),
        cs.numeric().log1p() / log(2),  # log2(RPKM + 1)
    )
    .join(genes, "gene_id")
    .sort("gene_id")
    .select("gene_id", *samples)
)
expr.head()

[43]:

shape: (5, 421)

gene_id	HG00097	HG00099	HG00100	HG00101	HG00102	HG00103	HG00104	HG00106	HG00108	HG00109	HG00110	HG00111	HG00112	HG00114	HG00116	HG00117	HG00118	HG00119	HG00120	HG00121	HG00122	HG00123	HG00124	HG00125	HG00126	HG00127	HG00128	HG00129	HG00130	HG00131	HG00133	HG00134	HG00135	HG00136	HG00137	HG00138	…	NA20770	NA20771	NA20772	NA20773	NA20774	NA20778	NA20783	NA20785	NA20786	NA20787	NA20790	NA20792	NA20795	NA20796	NA20797	NA20798	NA20799	NA20800	NA20801	NA20802	NA20803	NA20804	NA20805	NA20806	NA20807	NA20808	NA20809	NA20810	NA20811	NA20812	NA20813	NA20814	NA20815	NA20816	NA20819	NA20826	NA20828
str	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	…	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64	f64
"ENSG00000000457"	2.883367	1.834309	2.64608	2.585935	2.34584	2.925417	2.65781	2.789464	2.444504	2.75724	2.925114	2.680441	2.913031	2.689902	2.998056	2.697751	2.766225	3.042996	2.592133	2.867706	2.805805	2.765552	3.013281	2.484207	2.903942	2.904265	2.641283	2.685263	2.665948	3.092614	2.709707	2.602347	2.754889	3.092115	2.83426	2.444628	…	2.794595	2.784521	2.976292	2.700462	2.405552	2.506383	3.117941	3.252319	2.96167	2.72472	2.819782	3.059721	2.820945	2.876582	2.569356	3.077712	2.897556	2.628595	2.436556	2.437954	2.667586	2.787217	2.868959	2.551098	2.860837	2.700339	2.69241	2.745681	2.660285	2.554025	2.998785	2.825764	2.686573	2.872107	2.979091	2.894534	2.933071
"ENSG00000001630"	4.969557	4.224181	4.976058	5.218726	5.182351	4.767849	5.413671	4.758416	5.097579	5.25007	5.123745	5.073436	5.249919	5.124941	5.129572	5.13768	5.046579	5.088643	5.319505	4.862542	5.124061	4.70492	4.88879	4.696655	4.808061	4.801197	4.939249	5.109147	5.146362	5.185362	5.034132	5.057867	5.156479	5.437459	5.094595	5.130883	…	5.312725	5.104296	5.040871	4.911511	5.040483	5.20505	4.880228	4.601109	4.928203	5.244682	4.964349	5.099042	5.40614	5.257256	4.523433	5.279652	4.843644	5.203806	5.06995	5.086101	5.17526	4.878176	5.143902	5.335128	5.132463	4.878686	5.056312	5.12613	5.195856	5.252959	5.390342	4.933299	4.928922	5.257504	5.356906	5.191717	5.075509
"ENSG00000002549"	6.579422	5.805355	6.826235	6.520504	6.818759	6.527228	6.858863	6.43286	6.822276	6.527388	6.735795	6.33409	6.855515	6.859368	5.567008	6.420919	6.488021	6.804768	6.539446	7.0783	6.773451	6.681058	7.04007	6.570902	6.607061	6.269434	6.653516	6.510893	6.644596	6.452672	6.897555	6.780814	6.569071	6.54277	6.882278	7.068692	…	6.493295	6.865757	6.602131	6.882519	6.302862	6.556039	6.584511	6.675576	6.38825	6.653772	6.680885	6.700284	6.742045	6.667749	6.524001	6.427709	6.583828	6.415492	6.575268	6.444256	6.485439	6.3251	6.396262	6.784344	6.644984	6.518831	6.666653	6.223493	6.621568	6.901742	6.665184	6.65501	6.765441	6.371931	6.612746	6.47355	6.548355
"ENSG00000002745"	0.192883	0.029851	0.195664	0.126503	0.297257	0.129629	0.021852	0.275263	0.071207	0.263726	0.131601	0.230152	0.156213	0.204568	0.040416	0.225189	0.111335	0.164453	0.20008	0.145553	0.200483	0.209593	0.359152	-0.049574	0.191282	0.021413	0.227732	0.276992	0.143957	0.091331	0.589119	-0.037316	0.233788	0.993584	0.187406	0.291823	…	0.131191	0.100634	0.241065	0.097617	0.034683	0.077639	0.123341	0.08147	0.170642	0.085312	-0.027111	0.084868	0.537418	0.064881	0.057349	0.127728	0.128894	0.836652	0.034484	0.134283	0.151141	0.313646	0.01313	0.01391	0.463116	0.252047	0.06253	0.177781	0.392925	0.252537	0.07996	0.08126	0.14503	0.131564	-0.038256	0.073507	-0.062844
"ENSG00000003056"	6.664455	5.774003	6.621526	6.600959	6.868067	6.685243	6.656745	6.68273	6.585196	6.805682	6.768248	6.805896	7.043169	6.600454	6.652283	6.648638	6.907678	6.852528	6.939126	6.661728	6.610243	6.842894	6.705818	6.049611	7.000083	6.702603	6.49256	6.901974	6.533254	6.632719	6.696538	6.826387	6.803077	6.591067	6.601555	6.695223	…	6.829099	6.897351	6.992783	6.643068	6.48466	6.348297	6.941982	6.788952	6.922804	6.946785	6.239979	6.820033	6.74771	6.558058	6.517936	6.674047	6.696774	6.479763	6.708801	6.477054	6.400093	7.030301	6.608396	6.698758	6.190337	6.861345	6.815563	6.796029	7.081206	6.910327	6.565901	6.666187	6.484757	6.8308	6.826336	6.574483	6.77982

The genotypes from Geuvadis include some structural and multiallelic variants which we will filter out. To match Huang et al.’s analysis, we will also filter out indels despite the fact that GenVarLoader supports them.

[ ]:

pgen = PGEN(
    paths["pgen"], filter=is_snp & is_biallelic & ~pl.col("ID").str.starts_with("sv")
)

bed = gvl.with_length(
    genes.with_columns(chromEnd=pl.col("chromStart")), basenji2_in_len
).with_columns(pl.col("chrom").cast(pl.Utf8))
bed.head()

2025-06-05 10:28:24.258 | INFO     | genoray._pgen:_read_index:1164 - Loading genoray index.

shape: (5, 6)

gene_id	chrom	chromStart	hgnc	strand	chromEnd
str	str	i64	str	str	i64
"ENSG00000000457"	"1"	169797872	"SCYL3"	"-"	169928944
"ENSG00000001630"	"7"	91706730	"CYP51A1"	"-"	91837802
"ENSG00000002549"	"4"	17513279	"LAP3"	"+"	17644351
"ENSG00000002745"	"7"	120899885	"WNT16"	"+"	121030957
"ENSG00000003056"	"12"	9037015	"M6PR"	"-"	9168087

[9]:

n_genes = 100
assert n_genes > 0
assert n_genes <= genes.height

gvl.write(ds_path, bed[:n_genes], variants=pgen, samples=samples, overwrite=True)

2025-06-05 10:29:40.346 | INFO     | genvarloader._dataset._write:write:75 - Writing dataset to /cellar/users/dlaub/projects/GenVarLoader/data/geuvadis/ds.gvl
2025-06-05 10:29:40.352 | INFO     | genvarloader._dataset._write:write:147 - Using 420 samples.
2025-06-05 10:29:40.352 | INFO     | genvarloader._dataset._write:write:153 - Writing genotypes.

2025-06-05 10:29:47.391 | WARNING  | genvarloader._dataset._write:_write_from_pgen:397 - A region has no variants for any sample. This could be expected depending on the region lengths and source of variants. However, this can also be caused by a mismatch between the reference genome used for the BED file coordinates and the one used for the variants.
2025-06-05 10:29:50.967 | INFO     | genvarloader._dataset._write:write:177 - Finished writing.

[10]:

ref = "/carter/shared/genomes/homo_sapiens/grch37.primary.fa.bgz"
ds = gvl.Dataset.open(ds_path, ref).with_len(basenji2_in_len)

2025-06-05 10:29:51.034 | INFO     | genvarloader._dataset._impl:open:191 - Loading reference genome into memory. This typically has a modest memory footprint (a few GB) and greatly improves performance.
2025-06-05 10:29:51.982 | INFO     | genvarloader._dataset._reconstruct:from_path:183 - Loading variant data.
2025-06-05 10:29:52.666 | INFO     | genvarloader._dataset._impl:open:276 - Opened dataset:
GVL store at /cellar/users/dlaub/projects/GenVarLoader/data/geuvadis/ds.gvl
Is subset: False
# of regions: 100
# of samples: 420
Output length: ragged
Jitter: 0 (max: 0)
Deterministic: True
Sequence type: reference [haplotypes] annotated variants
Active tracks: None
Tracks available: None

This will find the index in Basenji2’s output that corresponds to lymphoblastoid cells.

[11]:

target_info = pl.read_csv(paths["basenji2_targets"], separator="\t")
targets = target_info.filter(pl.col("description").str.contains(r"lymphoblastoid"))[
    "index"
].to_list()
targets

[11]:

[5110]

This creates and memory maps an array on-disk to store the predictions.

[12]:

ploidy = 2
# (r s p t l)
pred_expr = np.memmap(
    pred_path,
    dtype=np.float32,
    mode="w+",
    shape=(ds.n_regions, ds.n_samples, ploidy, len(targets), basenji2_out_len),
)

[13]:

basenji2 = Basenji2(basenji2_params["model"])
basenji2.load_state_dict(torch.load(basenji2_weights()))
device = "cuda" if torch.cuda.is_available() else "cpu"
basenji2 = basenji2.to(device).eval()
basenji2 = torch.compile(basenji2)

Inference for 100 genes took ~9 minutes on a single A30 GPU, including compilation time.

[14]:

def transform(haps):
    haps = sp.DNA.ohe(haps).swapaxes(-2, -1)
    return haps


batch_size = 32
with torch.no_grad(), torch.autocast(device, torch.bfloat16):
    for batch_idx, batch in enumerate(
        tqdm(ds.to_dataloader(batch_size, transform=transform))
    ):
        bsize = len(batch)
        s = batch_idx * batch_size
        e = s + bsize
        ds_idx = np.arange(s, e)
        r_idx, s_idx = np.unravel_index(ds_idx, ds.shape)
        batch = rearrange(batch, "b p a l -> (b p) a l").to(device, torch.float32)
        pred = basenji2(batch)[..., targets]
        pred = rearrange(pred, "(b p) l t -> b p t l", b=bsize)
        pred_expr[r_idx, s_idx] = pred.numpy(force=True)

W0605 10:30:10.567000 459199 site-packages/torch/_inductor/utils.py:1250] [0/0] Not enough SMs to use max_autotune_gemm mode

[15]:

ploidy = 2
# (r s p t l)
pred_expr = np.memmap(
    pred_path,
    dtype=np.float32,
    mode="r",
    shape=(ds.n_regions, ds.n_samples, ploidy, len(targets), basenji2_out_len),
)

[16]:

# (g s p t l) -> (g s)
huang_expr = pred_expr[..., basenji2_out_len // 2 - 5 : basenji2_out_len // 2 + 5].mean(
    axis=(2, 3, 4)
)

[19]:

gene_rho = np.diag(
    st.spearmanr(expr[:n_genes, 1:].to_numpy(), huang_expr, axis=0).statistic,
    ds.n_samples,
)
indiv_rho = np.diag(
    st.spearmanr(expr[:n_genes, 1:].to_numpy(), huang_expr, axis=1).statistic,
    ds.n_regions,
)

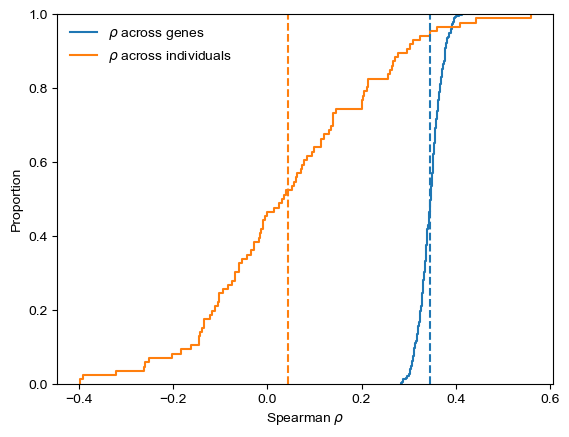

Since we’re only using the first 100 genes, the results do not match Huang et al.’s exactly but are still consistent with their results. Using personalized sequences as input, Basenji2 is able to predict differences in expression between genes but not between individuals.

[42]:

fig, ax = plt.subplots()
sns.ecdfplot(gene_rho.ravel(), label=r"$\rho$ across genes", ax=ax)
sns.ecdfplot(indiv_rho.ravel(), label=r"$\rho$ across individuals", ax=ax)
ax.axvline(np.nanmean(gene_rho), color="C0", linestyle="--")
ax.axvline(np.nanmean(indiv_rho), color="C1", linestyle="--")
ax.legend(loc="best")
ax.set(xlabel=r"Spearman $\rho$");
